Visibility 2 nm / 3 nm / 5 nm / 6 nm
Protection degree IP56
Materials
■Cover & Body : Polycarbonate
■Lens : Polycarbonate
Finish
■Cover & Body : Polycarbonate (Mat black)
■Lens : Polycarbonate (Clear)
Equipment
■LED : 4 W / 6 W
■With function of detecting illuminance drop
■70% Illuminance drop detection
■ Vessels of 50M and above in length
in compliance with COLREG1972
Electrical
■ AC 100 – 240 V, 50/60 Hz
■ Ambient Temperature : -30 °C ~ 55 °C
Warranty Period
■5 years
| Model No | Capacity | L(mm) | W(mm) | H(mm) | Weight(kg) | Remarks | Visibility(nm) | |
|---|---|---|---|---|---|---|---|---|

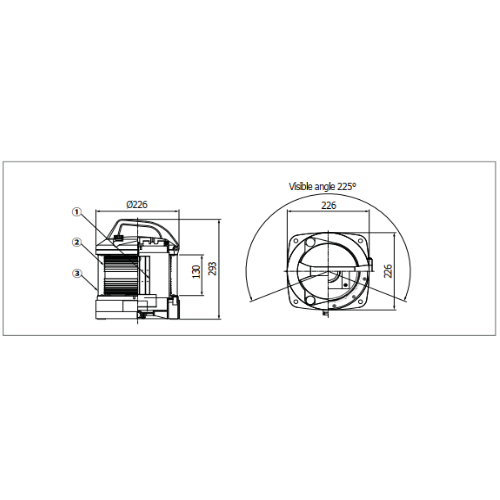

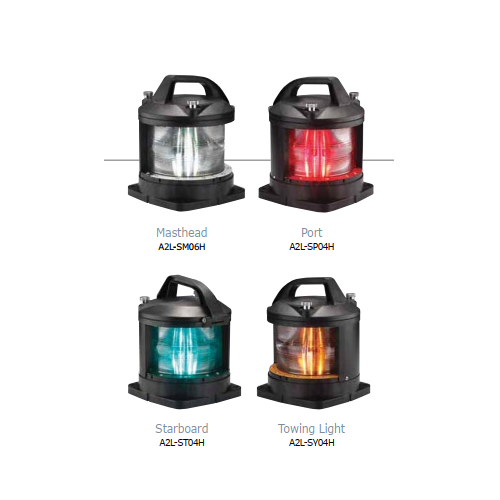

| A2L-SM06Hh | Masthead | 6 W | 226 | 226 | 293 | 4.2 | White (225°) | 6 |

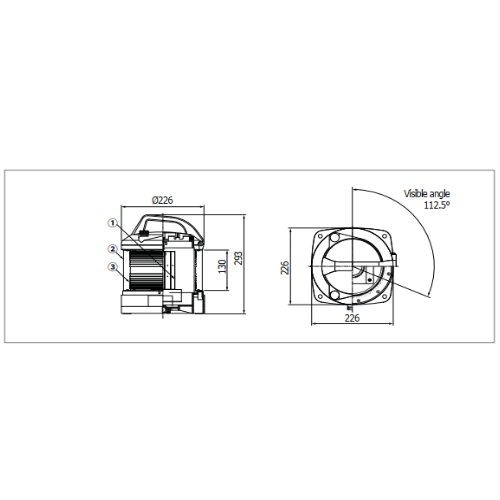

| A2L-SP04Hh | Port | 4 W | 226 | 226 | 293 | 4.2 | Red (112.5°) | 3 |

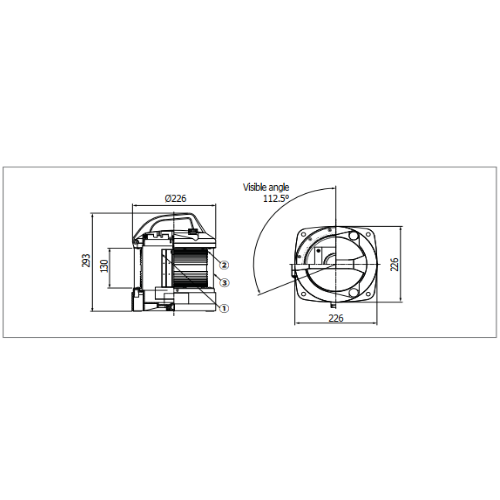

| A2L-ST04Hh | Starboard | 4 W | 226 | 226 | 293 | 4.2 | Green (112.5°) | 3 |

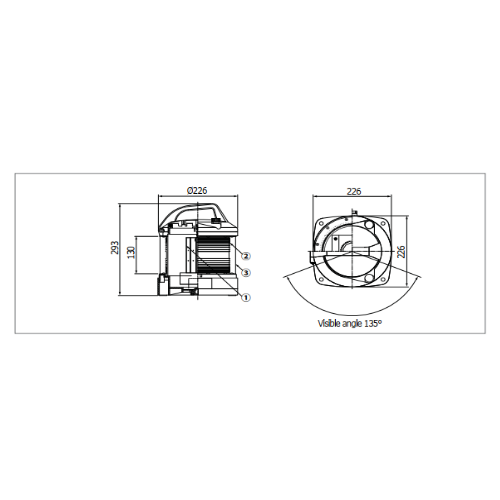

| A2L-SS04Hh | Stern | 4 W | 226 | 226 | 293 | 4.2 | White (135°) | 3 |
| A2L-SW06Hh | White(Anchor) | 6 W | 226 | 226 | 293 | 4.2 | White (360°) | 3 |
| A2L-SR06Hh | Red | 6 W | 226 | 226 | 293 | 4.2 | Red (360°) | 3 |
| HVL-6G | Huge vessel | 6 W | 226 | 226 | 293 | 4.2 | Green 180-200 F/min | 2 |
| DCL-6R | Dangerous cargo | 6 W | 226 | 226 | 293 | 4.2 | Red 120-140 F/min | 2 |
| MVL-SW | Manoeuvring | 6 W | 226 | 226 | 293 | 4.2 | White (360°) | 5 |
| A2L-SY04Hh | Yellow (Towing) | 4 W | 226 | 226 | 293 | 4.2 | Yellow (135°) | 3 |
