Description

Protection degree IP66 / IP67

Materials
■Body : Aluminium die casting
■Front glass : Heat and impact resistant glass

Finish
■Body : White epoxy powder coat and stove enamelled
(Munsell No. N-9.3)

Light Source
■Power LED : 400 W

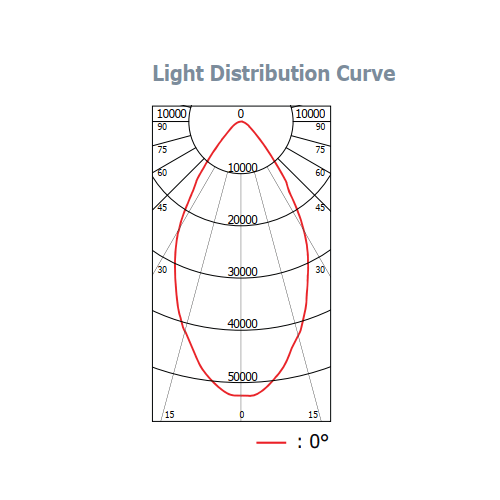

■ TIR Lens : 60°
*TIR : Total Internal Reflection

Equipment
■ Two Cable glands M24 (Diameter: Max. 17 mm cable)
■ Vertical adjust (Up: 40°, Down: 60°)

Electrical
■ AC 220 – 240 V, 50/60 Hz
■ Ambient Temperature : -30 °C ~ 45 °C

Option
■  AC 100 – 277 V, 50/60 Hz

Warranty Period
■5 years
