Description

Application

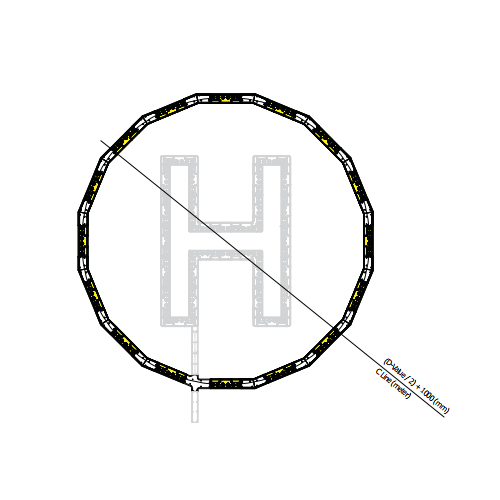

■Helideck LED touchdown/positioning marking
(CIRCLE marking)

Protection degree IP66 / IP67

Explosion protection
■Ex eb mb op is IIC T6 Gb (-30 °C < Ta < +55 °C) ■Standard : CAP 437 / ICAO Annex 14 IEC 60079-0 / 7 / 18 / 28 Materials ■Body : Marine grade aluminum (LM6) ■Globe : Engineering Plastic (fl) Finish ■Non-skid Painting (p > 0.65)
■ YELLOW : BS 381C : 309 or BS 4800:10.E.53

Light Source
■Number of LED at LED module : 6EA
■Number of LED modules : 6EA
(Six separate circuits in the EXLED-HC)
(Three circuits are normally working)
(The others are automatically switched
in the event of LED(s) failure)
■Color: Yellow (acc. to CAP 437 / ICAO Annex 14)
Equipment
■MINI PLUG : 9pins (2 x power line + CAN line)
■Easy Installation & Maintenance

Electrical
■Input Voltage : DC 24 V ± 10%
■Power consumption : about 4 W

Warranty Period
■10 years
