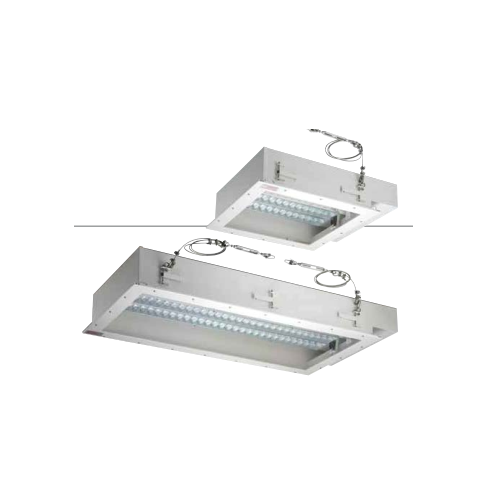

Description

Protection degree IP54 / IP56, IP65 / IP66
■Explosion degree : Ex d e mb IIC T4 Gb
(-25 °C < Ta < 50 °C)
■Standard : IEC60079-0 and IEC60079-1
IEC60079-7 and IEC60079-18

Materials
■Body : Electro zinc coated steel sheet
■Globe : Clear polycarbonate
■ Louver: Aluninium

Finish
■Body : White epoxy powder coat and stove enamelled
(Munsell No. N-9.3)

Equipment
■Fluorescent lamp : 18 W / 36 W
■Light sources : T26
■Lamp base : G13
■Cable gland : M20

■Battery : 6 V Ni-cd, 9.6 V Ni-cd
■Emergency duration : 1.5hours or 3hours

Mounting

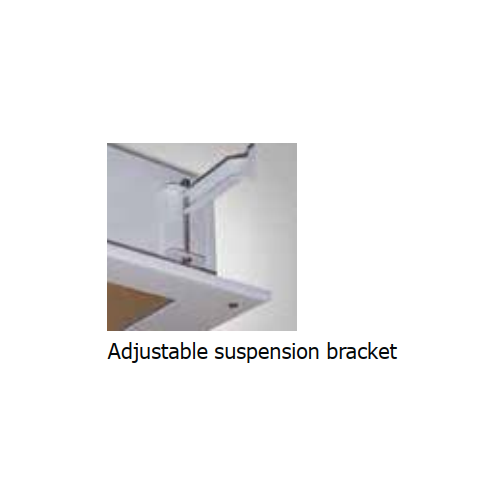

■ Adjustable suspension bracket standard. Rail brackets
for panel ceiling (Dampa) to be ordered separately.

Electrical
■ AC 100-254 V, 50/60 Hz
■Ballast: Electronic

Option
■Fire class : B-15
■Cable gland : M25, NPT1/2″, NPT3/4″
