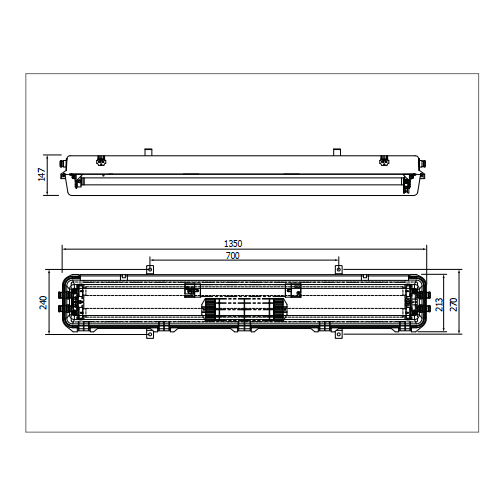

Description

Protection degree IP66 / IP67
■Explosion degree : Ex demb IIC T4 Gb
(-25 °C < Ta < 50 °C)
■Standard : IEC60079-0 and IEC60079-1
IEC60079-7 and IEC60079-18

Materials
■Body & Bar: GRP (Glassfiber Reinforced Polyester)
■Globe : Clear polycarbonate
■Reflector: Electro zinc coated steel sheet

Finish
■Body & Bar : RAL 7047
■Reflector: White epoxy powder coat and stove
enamelled (Munsell No. N-9.3)

Equipment
■Fluorescent lamp : 18 W / 36 W
■Light sources : T26
■Lamp base : G13
■Cable gland : M20

■Battery : Ni-cd, 6 V, 4500mAH
■Battery discharging time : 3hr (18 W), 1.5hr (36 W)

Electrical
■ AC 100-254 V, 50/60 Hz
■ Anti-vibration packing
■Ballast: Electronic

Option
■Cable gland : M25, NPT1/2″, NPT3/4″

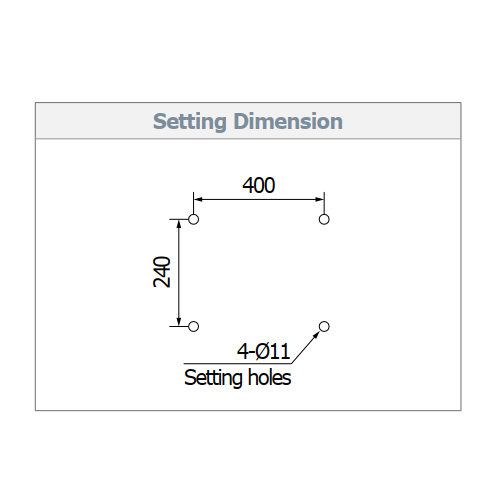

■Mounting Bracket (NM),
Hook Bracket (HO),
M8 Eyebolt (NH)
