Description

Protection degree IP66
■Explosion degree : Ex nA nR IIC T3 Gc
(-25 °C < Ta < 50 °C)
■Standard : IEC 60079-0 / IEC 60079-15

Materials
■Body : Stainless steel 316 sheet deep drawn
■Front glass : Hard and impact resistant glass
■Reflector: High intensity Aluminium

Finish
■Body : White epoxy powder coat and stove enamelled
(Munsell No. N-9.3)

Equipment
■Lamp : Metal Halide (250 Wz 400 W),
High Pressure Sodium (250 Wz 400 W)
■Lamp base : E39 / E40
– Two cable glands : M20
■Built-in Ballast
■ Vertical adjust (Up : 40°z Down : 45°)
Electrical
■ AC 220-240 V, 60 Hz
Option
■50 Hz
■Cable gland : M25z NPT1/2″, NPT3/4″
■ Anti-vibration packing

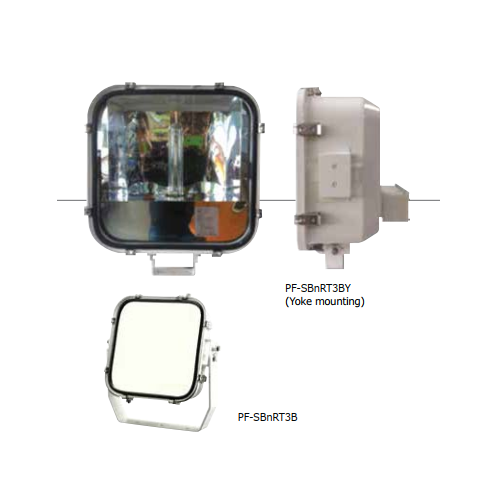

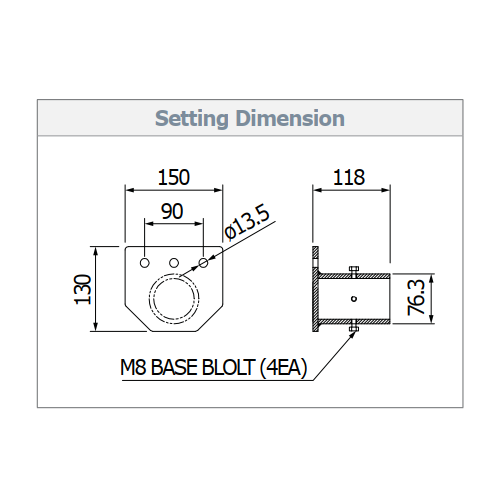

■ Yoke mounting
