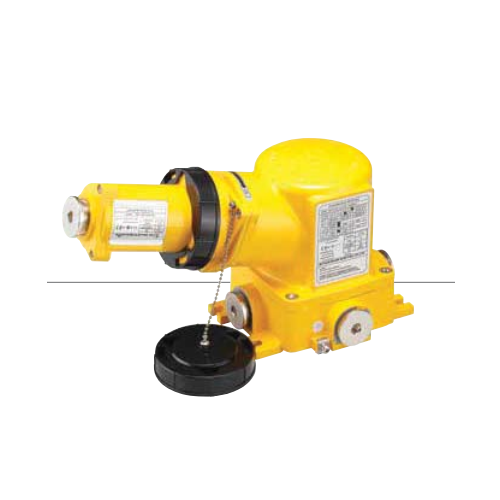

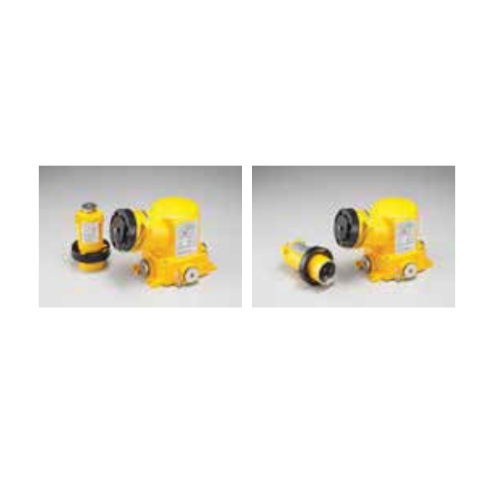

Explosion Proof (Flameproof) Receptacle & Plug 116 & 32 A

Description

Protection degree(pending) : IP66
■Explosion degree :
Ex d IIC T6 Gb (-25 °C < Ta < 50 °C)
■Standard : IEC 60079-0 / IEC 60079-1, IEC 60309

Materials
■Body & Bottom : Aluminium die casting
(LM6 or ALDC12)
■Cover: UV resistant PC (Black, Red, Blue, Grey, Yellow)
■Pins : Ni plated Brass

Finish
■Body & Bottom :
Yellow epoxy powder coat and
Stove enamelled (Munsell No. N-9.3)

Electrical

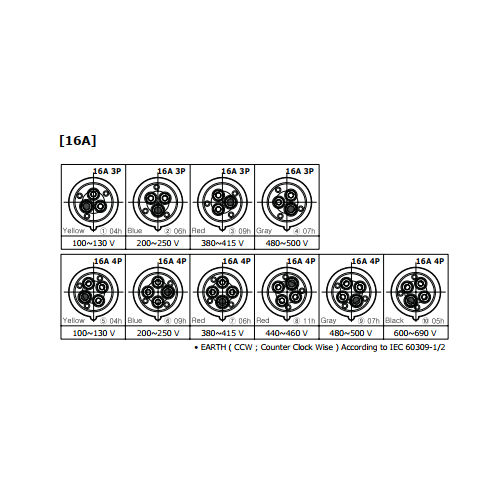

■ 16 A 3P (100-500 V), 16 A 4P (100-690 V),
32 A 3P (100-500 V), 32 A 4P (100-690 V),
32 A 5P (100-690 V)

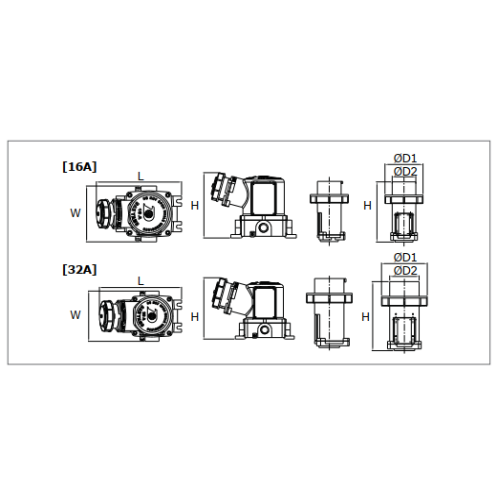

Model No	Capacity	L(mm)	W(mm)	H(mm)	D1(mm)	D2(mm)
EXR-1*******	247	155	195	.	.	3.6-3.8
EXP-1*******	./td>	.	136	85	85	0.6—0.8
EXR-2*******	265/td>	.	200	230	230	4.6—4.8
EXP-2*******	./td>	.	156	102	66	0.9-1.1
